Add grid

Add a grid to the viewer

To add/show/hide a grid on the viewer, press g. Or select Add grid in the main pipeline interface

Grid set-up

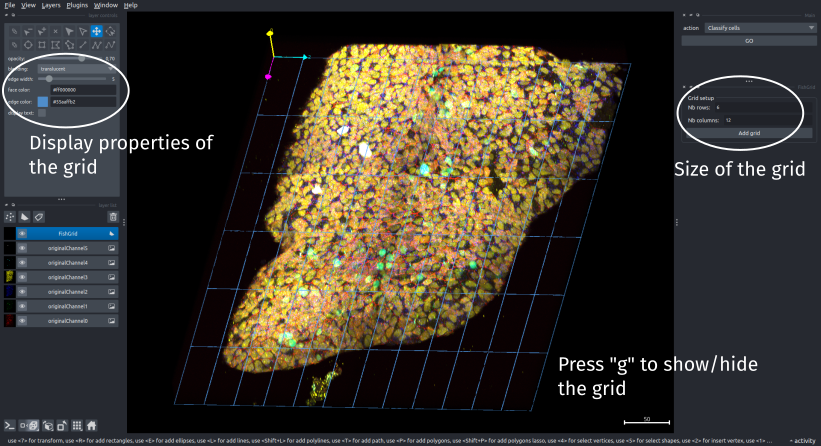

When creating the grid, if you press g or select the Add grid option, the parameters to setup the grid will appear in the right panel of the viewer.

You can set-up the number of lines and columns. By default, the name of each cell of the grid is displayed in the center of the cell. You can disable this by unselecting display text in the top left panel of the FisherGrid layer (which should be selected). In that panel, you can also modify the width of the grid lines and its color.

Grid display

Once the grid has been created, you can always switch between showing it or hiding it by pressing g.
